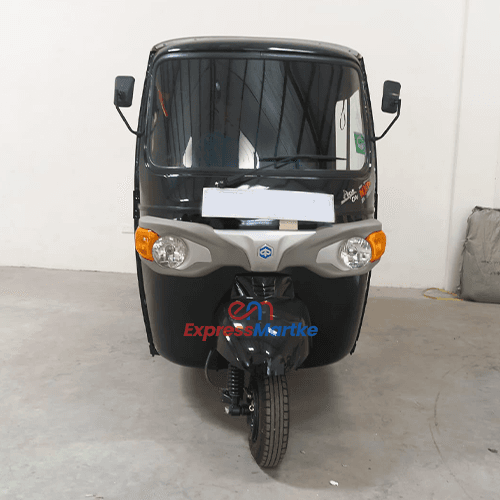

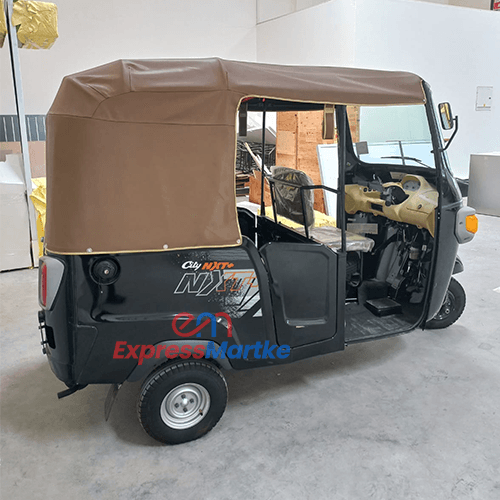

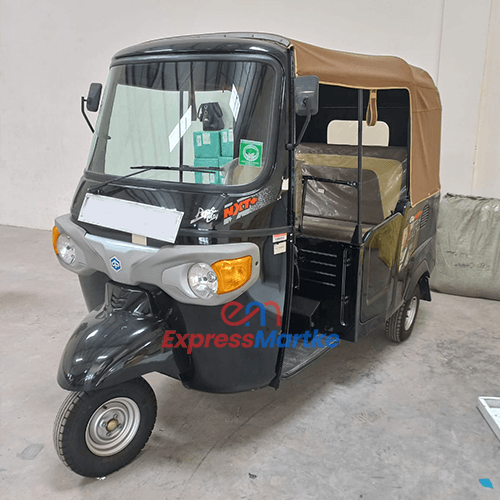

Ape City Petrol NXT plus | Piaggio | Brand New Tuk Tuk

ENGINE

Type: 4-stroke Air Cooled Engine

Displacement: 230cc

Max Power: 7.17 @ 4600 rpm

Max Torque: 17.10 @ 2700 rpm

TRANSMISSION

Clutch Type: Multi Plate Wet Type

Gear Box: Constant Mesh

Gear: 5 Forward, 1 Reverse

SUSPENSION

Front: Hydraulic Telescopic Shock Absorber With Helical Compression Spring with dampener.

Rear: Hydraulic Telescopic Shock Absorber With Rubber Compression Spring with dampener.

Steering: Handle Bar Type

Brake: Hydraulically Actuated Drum Brake – Combined Type

Tire: 4.0 –8, 4 PR

ELECTRICAL SYSTEM

System Voltage 12V DC

Battery Rating35 Ah

DIMENSIONS

Wheelbase 1920mm

Overall Width 1370mm

Overall Length 2700 mm

Overall Height 1725mm

Minimum Ground Clearance 170 mm

WEIGHT

GVW 722 Kg

Kerb Weight 422 Kg

Seating Capacity Driver + 3 Passenger

PERFORMANCE

Maximum Gradeability24.30%Fuel Tank Capacity

CNG : 30 Ltr. Water Capacity, Petrol : 2.8 Ltr.

Maximum Speed 60 Km/h
